Application
YG611E Xenon Light Fastness Tester is used for testing the color fastness-to-light, color fastness-to-weather of various colored textiles in color fastness experiments and also for the testing of the color fastness-to-light, light aging of paint, pigment, coating, rubber, plastic, wood floor, paper and other materials.
Relevant Standards
AATCC TM16 ASTMG26 ASTM D2565 ASTMD4459 ASTM D6695 ASTM G155 AATCC TM169169 ISO105-B02/B04/B06 ISO11341 ISO4892 ISO03917 ISO11341 ISO 4892-2, etc.
Instrument characteristics
1. Equip with air cool 2.5KW xenon lamp.
2. Digital setting of light intensity, real-time monitoring and automatic adjustment to meet different standards for testing the stability of light source (420nm; from 300nm to 400nm waved band monitor optional).
3. The sample is tested with black plate thermometer ( BPT ) , irradiance detector at the same position (in equidistance) to really indicate measuring state of the sample, the tested data is transmitted synchronously by using technology of radio frequency and indicated on the color screen in the forms of digit, chart, curve, etc. after CPU process, without shutdown for observation.
4. Test and radio transmission are powered by using light conversion technology, no additional power supply is required.
5. 5.7 inch color touching screen display control and various test monitoring modules (animation, digit, chart) make operation easy, visual and clear.
6. With parallel communication interface for print out of A4 sized paper in English version
7. Individual timing of each sample clamp may enable different sample test in a same tester and facilitate test monitor and reduce operation cost.
8. Specialized long-arc xenon lamp technology adopted to real simulate sunlight spectrum.
9. With industrial temperature control (refrigeration) system for smoothly and fast adjusting temperature in test chamber.
10. Ultrasonic humidification and professional dehumidification system guarantee the accuracy and stability of testing humidity.
11. Natural circulation system and air filter system inside reduces the environmental requirements greatly.
12. The test can run for 1000 hour continuously with quality guarantee
Technical parameters
|
Model
|
YG611E-II
|
|
Test temperature
|
20〜50℃；Resolution: 0.1 ℃
|
|
Humidity control
|
Sunlight period :10-75%RH, humidity fluctuations ±1%RH;
Dark cycle :40-95% RH, humidity fluctuate ± 1% RH
|
|
Time control
|
0min~999:59h,Accuracy ± 1min
|
|
Irradiance control
|
0.6-1.5W/m2/420nm; digital set, automatic compensation
|
|
Wavelength monitoring
|
Optional 340nm, 420nm ,300-400nm 300-800 band
|
|
Xenon arc lamp power
|
Air cool 2.5KW
|
|
Sample holder rotation
|
1-5 rpm settable
|
|
Maximum exposure area
|
450cm2
|
|
Dimensions of holder
|
100×75mm 5 pieces (AATCC standard);100×45mm 10 pieces (ISO standard)
|
|
Timing of sample holder
|
≤10000h
|
|
Photoperiod
|
≤1000h
|
|
Spray cycle
|
≤1000h
|
|
Blackboard temperature
|
(BPT)40～80℃
|
|
Display control
|
5.7-inch touch screen
|
|
Data Output
|
Digital color display (A4 print in English optional)
|
|
Sample holder type
|
Double
|
|
Power supply
|
AC220V, 4kW
|
|
Dimensions
|
900×600×1820mm
|
|
Weight
|
220kg
|
|
|

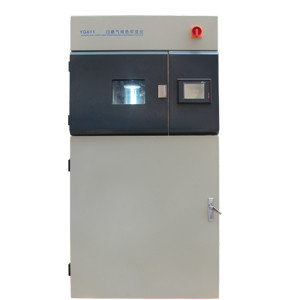

Textile Testing Instrument Xenon Light Fastness Tester Images
|
