Textile Fabric bursting strength tester ASTM D3786 ISO2758
1. Usage:
YG032E Textile Fabric bursting tester is applied to test bursting strength and bursting height using diaphragm method of textiles, non-woven fabric, leather and other materials.
2. Related standard:
ASTM D3786-06 ISO 2758 EDA NA 80.4-02 ISO 13938-2 NEXT 22 2006 EDA NA 80.3-99 IWSTM 29 M&S P27 GB /T 7742.2
3. Instrument features:
1. Chinese and English large-screen touch-screen display, automatic calibration bursting pressure sensitivity can be settable, to ensure the breaking up of different materials in different situations.
2. Automatic test pattern, automatically display rupture values, residual value, bursting height of diaphragm calibration after material rupture (with consistent to internationally test methods accepted).
3. Pneumatic clamping device to facilitate sample holder, also shows the clamping force, to ensure the stability of the sample holder, automatic process to complete the test.
4. Hydraulic pressure speed can be adjusted to accommodate different material standard test methods
5. Equip with print interface, print the test data at any time.
6. Rubber membrane breaking up which use original United States MULLEN rubber membrane,ensuring test data consistent with the original machine of MULLEN company.
4. Main technical parameters:
|
Model
|
YG032E-2
|
YG032E-10
|
|
Test range
|
2.00Mpa
|
10.00Mpa
|
|
Accuracy
|
0.002Mpa
|
0.002Mpa
|
|
Diaphragm membrane thickness
|
≤2mm
|
|
Test area
|
7.3cm2(Φ30.5mm),10cm2(Φ35.7mm),50cm2(Φ79.8mm),100cm2(Φ112.8mm)(optional)
|
|
Maximum dilation
|
75±0.02mm
|
|
Pressurization rate
|
10-500ml/min
|
|
Test method
|
constant speed bursting, given pressure, given dilation
|
|
Unit conversion
|
kpa, kgf/ cm2, psi, mmHg, lb/in2, Free to convert
|
|
Power
|
AC20V 50Hz 200W
|
|
Dimensions
|
600×400×530mm
|
|
Weight
|
90Kg
|
|
|

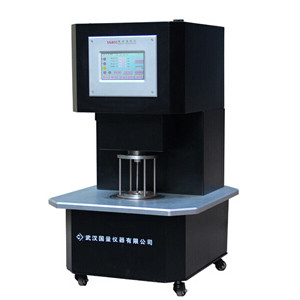

Textile Fabric Bursting Tester Images
|
